Descripción:

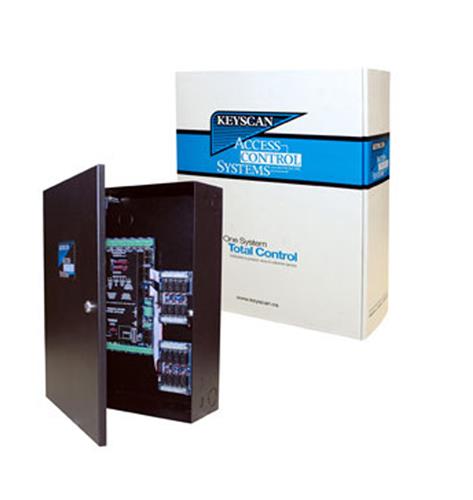

El CA4500 brinda toda la potencia y la versatilidad del panel
de 8 lectoras CA8500 de Keyscan, con la capacidad adicional de
optimizar las instalaciones del sistema según el número
de puertas que se desee proteger.
Comparte este producto
| ACCESS CONTROL UNIT | |
| Doors Supported | 4 doors |
| Reader Ports | 4 |
| Multi-ACU Support | Unlimited |
| System Status LEDs | Yes |
| Dual Processors | Yes |
| Flash Memory | Yes |
| Power Fail Output | Yes |
| Floor Monitor Inputs (Supervised) | NA |
| INPUTS | |
| Request to Exit (RTE) Inputs (Supervised) | 4 |
| Door Contact Inputs | 4 |
| Auxiliary Inputs (Supervised) | 16 |
| I/O Input Expansion | 64 (banks of 16) |
| OUTPUTS | |
| Auxiliary Output Relays | 4 |
| Expansion Auxiliary Output Relays | 8 |
| I/O Outputs | 64 (banks of 16) |
| Door Output Relays | 4 |
| CAPACITY | |
| No. Of Cardholders | 32,000 |
| Transaction File Buffer | 6000 |
| Time Zones | 256 |
| Time Schedules | 512 |
| Group Levels | 511 |
| Holiday Dates | 64 |
| CONNECTIVITY | |
| Ethernet Ready | Optional |
| POE- Power over Ethernet (IEEE 802.3af) |
NA |
| CMAC Reverse IP | Optional |
| Serial Communication (Optional) | Yes |
| Dial Up Communication (Optinal) | NA |
