Descripción:

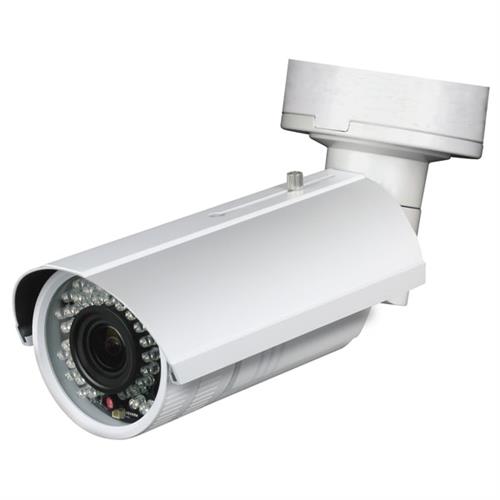

3,0 megapíxeles (2048 x 1536) de alta resolución, 120dB rango dinámico amplio, súper baja iluminación, reducción de ruido digital 3D, IP66, rango IR: Aproximadamente 65 a 98 pies (unos 20 a 30 metros), lente VF motorizado
Código: LTCMIP8433-Z
Comparte este producto
| CMIP8433-Z | |
| Camera | |
| Image Sensor: | 1/3" sensor |
| Min. Illumination: | 0.1 lux@F1.2, AGC ON 0.17 lux@F1.6, AGC ON 0 lux with IR |
| Shutter time: | 1/25s ~ 1/100,000s |
| Lens: | 2.7 ~ 9 mm @F1.6, angle of view: 101° ~ 30.4° Motorized VF lens |
| Lens Mount: | Φ14 |
| Auto iris | DC drive |
| Day& Night: | IR cut filter with auto switch |
| Wide dynamic range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression: | H.264 / MPEG4 / MJPEG |
| Bit Rate: | 32 Kbps ~ 16 Mbps |
| Dual stream | Yes |
| Image | |
| Max. Image Resolution: | 2048 × 1536 |
| Frame Rate: | 60Hz: 15fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 x 720) 50Hz: 12.5fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 x 720) |
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser |
| Network | |
| Network Storage: | NAS (iSCSI optional) |
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional) |
| Security: | User authentication, watermark |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M ethernet interface |
| General | |
| Operating Conditions: | -25°C ~ 60°C (-13°F ~ 140°F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 12W |
| Weather Proof: | IP66 |
| IR Range: | Approx 65 to 98 ft(About 20 to 30 meters) |
| Dimensions: | 98 × 85 × 325 mm (3.86” ×3.34” × 12.80”) |
| Weight: | 1420 g (3.13 lbs) |
