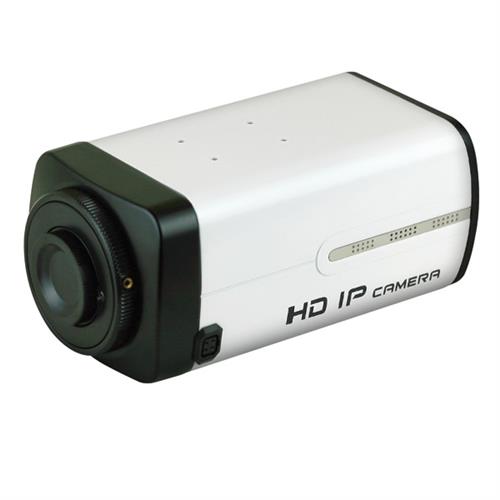

| Camera |
| Image Sensor: |
1/3" Progressive Scan CMOS |
| Min. Illumination: |
Color: 0.5Lux @ F1.2, 0.1Lux @ (F1.2)
B/W: 0.05Lux @ F1.2, 0.01Lux @ (F1.2) |
| Shutter time: |
1/25s~1/100,000s |
| Lens Mount: |
C/CS mount |
| Auto Iris: |
DC drive |
| Day& Night: |
IR cut filter with auto switch |
|
| Compression Standard |
| Video Compression: |
H.264 / MPEG4 / MJPEG |
| Bit Rate: |
32 Kbps ~ 16 Mbps |
| Audio Compression: |
G.711/G.726 |
| Dual Stream: |
Yes |
|
| Image |
| Max. Image Resolution: |
1600x1200 |
| Frame Rate: |
15fps (1600×1200), 25fps (1280×960), 30fps (1280×720)
|
| Image Settings: |
Saturation, brightness, contrast adjustable through client software or web browser |
|
| Network |
| Network Storage: |
NAS (iSCSI optional) |
| Alarm Trigger: |
Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional) |
| Security: |
User authentication, watermark |
| System Compatibility: |
ONVIF, PSIA, CGI |
|
| Interface |
| Audio Input: |
1-ch 3.5 mm audio interface, MIC IN/LINE IN |
| Audio Output: |
1-ch 3.5mm audio interface (line level, 600 Ω) |
| Communication Interface: |
1 RJ45 10M / 100M ethernet interface and 1 RS-485 interface |
| Alarm Input: |
1 |
| Alarm Output: |
1 |
| Video Output: |
1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage: |
Built-in SD/SDHC slot, up to 32 GB |
| Reset Button: |
Yes |
|
| General |
| Operating Conditions: |
-10 °C ~ 60 °C (14 °F ~ 140 °F)
Humidity 90% or less (non-condensing) |
| Power Supply: |
12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: |
max. 4.5W (max. 7.5W with IR cut filter on) |
| Dimensions: |
68 × 64.9 × 144.8 mm
(2.68” × 2.56” × 5.70”) |
| Weight: |
500g (1.10bs) |
|
