Descripción:

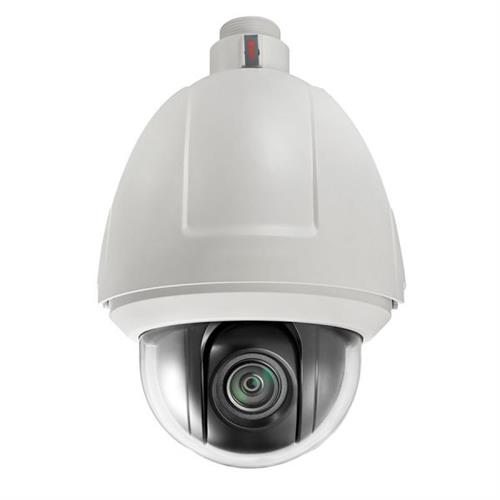

1/3 "CMOS escaneo progresivo, zoom óptico de 20x (4,7-94mm), Día / noche real, 3D DNR 25fps (P) / 30 fps (N) a una resolución de HD1080p, H.264/MJPEG, transmisión de doble flujo, máscara de privacidad, IP66
Código: LTPTZIP752X20
Comparte este producto
| Camera | Image Sensor | 1/3’’ Progressive Scan CMOS |
| Effective Pixels | 2230K pixels | |
| Min. Illumination | Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6 | |
| White Balance | Auto / manual / one touch wb / atw | |
| AGC | Auto / manual | |
| DNR | Off/ normal/ expert | |
| Shutter time | 50Hz: 1/25-1/100,000s, 60Hz: 1/30-1/100,000s | |
| Day & Night | IR Cut Filter | |
| Privacy mask | 24 programmable masks | |
| Focus mode | Auto/ semi-automatic/ manual | |
| Max. Image Resolution | 1920 x1080 | |
| Lens | Focal length | 4.7 - 94mm, 20x |
| Zoom Speed | Approx.2.7s (Optical Wide-Tele) | |
| Aperture range | F1.6 - F3.5 | |
| Function | Pan Range | 360° Continuously |
| Tilt Range | -5°-90° (auto flip) | |
| Pan Speed | 0.1°~300°/s | |
| Tilt Speed | 0.1°~240°/s | |
| Preset Positions | 256 | |
| Pattern Scan | 4 | |
| Cruise Scan | 8 | |
| Pan Scan | 4 | |
| Power | Power Supply | 24VAC / 3A |
| Power Consumption | Outdoor dome: Max. 40W (Heater On), Max. 20W(Heater O˜); Indoor/In-ceiling dome: Max. 20W | |
| Environment | Weather Protection | IP66, indoor and outdoor |
| Operating Temperature | -22°F ~ 149°F (-30℃ ~ 65 ℃) | |
| Storage Temperature | 4°F ~ 144 °F (-20℃ ~ 60 ℃) | |
| Humidity | RH90% Max. (Non-condensing) | |
| Mechanical | Chasis Material & Color | Aluminum & White |
| Product Dimension | 8.66” × 12.81” | |
| Weight | 11.02 lbs |
