Descripción:

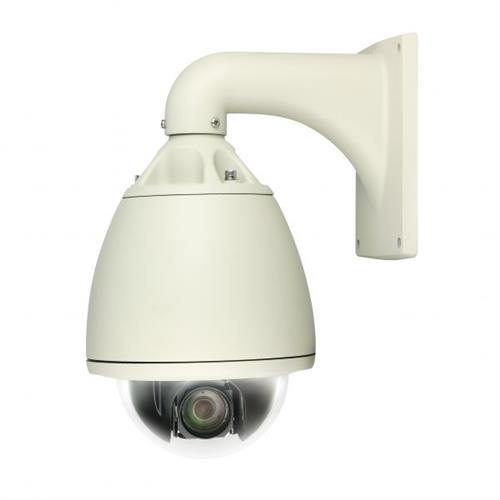

7 "cámara domo al aire libre de alta velocidad, 1/4 "Sony CCD de transferencia interlineal, Color: 550TVL, B / W: 650 líneas de TV, 37X Zoom Óptico, 3.5 ~ 129.5mm, WDR, OSD, IP66 resistente a la intemperie, cubierta de aluminio
Código: LTPTZ951X37W
Comparte este producto
| Camera | |
| Image Sensor | 1/4`` Sony Interline Transfer CCD |
| Horizontal Resolution | Color:550TVL,B/W:650 TVL |
| Min.Illumination | Color:0.2Lux/F1.6(50 IRE),B/W:0.02 Lux/F1.6(50 IRE) |
| Video System | NTSC |
| Privacy Mask | 4 Zone |
| Synchronization System | Internal/External |
| White balance | Auto/Manual |
| Wide dynamic range | Yes |
| Video Scanning Type | 2:1Interlace |
| S/N Ratio | > 52dB(AGC off) |
| Lens | |
| Focal Length | 3.5 ~ 129.5mm,37X |
| Iris | Auto |
| Aperture Range | F1.6(W) ~ F3.9(T) |
| Zoom | 37X Optical Zoom |
| ICR | IR Cut Filter |
| Pan and Tilt | |
| Pan Range | 360° Continuously |
| Tilt Range | 90°(180° auto flip) |
| Pan Preset Speed | 0°~300°/s |
| Tilt Preset Speed | 0°~120°/s |
| Pan Manual Speed | 0°~300°/s |
| Tilt Manual Speed | 0°~120°/s |
| Preset Positions | 255 |
| Cruise Tours | 8 |
| Pattern Tours | 4 |
| Auto Scan | 4 |
| Input/Output | |
| Video Output | CVBS 1.0Vp-p/75Ω |
| Power | |
| Surge and lightning protector | Yes |
| Built-in Fan | Yes |
| Power Supplier | 24V AC/3A |
| Communication | |
| Protocols | Pelco-D/Pelco-P |
| Baud Rate | 2400/4800/9600/19200 |
| Interface | |
| Communication Interface | RS485 (+/-) |
| General | |
| OSD | Yes (English/Chinese) |
| Weather Protection | IP66 |
| Operating Temperature | 14°F ~ 158 °F (-10℃~ 70 ℃) |
| Chasis Material & Color | Aluminum & Gray |
| Packing | |
| Net Weight | 3.84kg |
| Box Dimension | 542 (W) X272 (L) X315 (H) mm |
| Box Gross Weight | 5.2kg |
| Box Quantity Per Carton | 2pcs/carton |
| Carton Gross Weight | 11.4kg |
| Carton Dimension | 570(L)X560(W)X370(H)mm |
