Descripción:

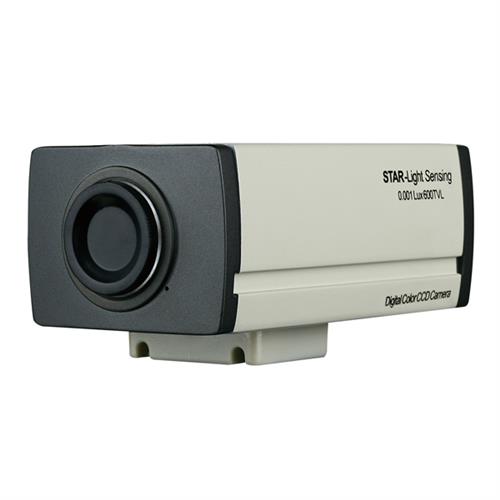

CMB161TD está equipada con la última generación de procesadores de señales digitales, en comparación con los modelos anteriores, han mejorado considerablemente el rendimiento de los sensores de luz.
Código: LTCMB161TD
Comparte este producto
| Image Sensor | 1/3" CCD Sharp RJ2352 |
| Lens | Not included |
| Iris | Auto |
| ICR | Yes |
| Video System | NTSC |
| Effective Pixels | 768(H) X 494(V) |
| Video Scanning Type | Interlace |
| Video Output | 1.0 Vp-p, 75 Ohm |
| Sync. System | Internal (DC Power in) Line Lock (AC power in) |
| Horizontal Resolution | 600 TV lines |
| S/N Ratio | > 48dB (AGC off) |
| Min. Illumination | 0.03 Lux (Color) / 0.001 Lux (F1.2) |
| Electronic Shutter | 1/60 ~ 1/100,000 |
| WDR (Wide Dynamic Range) | D-WDR |
| Star Light Sensing | Yes |
| White Balance | ATW / Manual / AWC |
| BLC | OFF/ON (48 zones ccompensation) |
| DNR (Digital Noise Reducer) | 2D/3D DNR |
| Mirror | Horizontal / Vertical Flip, ON/OFF |
| Freeze | Yes |
| ATR | N.A. |
| Digital Zoom | Yes |
| Privacy Mask | 8 zones |
| Motion Detection | 1 zone |
| Camera ID | N.A. |
| OSD | English |
| Infrared Red Lamps | N.A. |
| Infrared Red Wave Length | N.A. |
| Effective IR Lighting Distance | N.A. |
| Audio Input | Mic port x 1 |
| Audio Output | Audio output port x 1 |
| Supply Voltage | DC 12V / AC24V +/- 10% with auto polarity sensing |
| Power Consumption | 150mA |
| Operating Temperature | -10℃ ~ 50 ℃ (14°F ~ 122 °F) RH 90% Max. (Non-condensing) |
| Storage Temperature | -20℃ ~ 60 ℃ (-4°F ~ 140 °F) |
| Dimension | 130mm x 70mm x 60mm (5.12`` x 2.76" x 2.36") |
| Weight | 340 g(0.75 lb) |
| Chasis Material | Aluminum |
| Chasis Color | White |
| Weather proof | N.A. |
| Vandal proof | N.A. |
