Descripción:

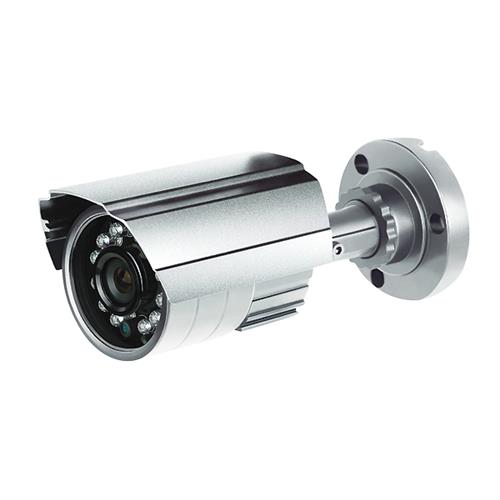

520/600 TV líneas de resolución, 1/3 "PixelPlus, lente de 3.6mm, 24 PC IR LED, 50 pies, entrada de 12 V DC, resistente a la intemperie, a prueba de agresiones
Código: LTCMR8952
Comparte este producto
| Model # | CMR8952 | CMR8962 | |
| Image | Image Sensor | 1/3" PixelPlus | 1/3" PixelPlus |
| Effective Pixels | 640(H)x480(V) | 728(H)x488(V) | |
| Horizontal Resolution | 520 TVL | 600 TVL | |
| Focal Length | 3.6mm fixed lens | 3.6mm fixed lens | |
| Electrical | Video System | NTSC | NTSC |
| Video Scanning Type | 2:1 Interlace | 2:1 Interlace | |
| Sync. System | Internal | Internal | |
| S/N Ratio | > 47dB | > 50dB | |
| Min. Illumination | 0 lux (When IR LEDs On) | ||
| Video Output | 1 BNC, 1.0 Vp-p, 75 Ohm Composite | 1 BNC, 1.0 Vp-p, 75 Ohm Composite | |
| Function | Electronic Shutter | 1/60s ~ 1/100,000s | 1/60s ~ 1/100,000s |
| White Balance | Auto | Auto | |
| BLC | Auto | Auto | |
| AGC | Auto | Auto | |
| AES | Auto | Auto | |
| Infrared LED | Infrared Red Lamps | 24 Pc | 24 Pc |
| IR Distance | 50ft | 50ft | |
| Power | Input Voltage | DC 12V | DC 12V |
| Power Consumption | < 2W (LED OFF) / < 6W (LED ON) | < 2W (LED OFF) / < 6W (LED ON) | |
| Environment | |||
| Operating Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) | 14°F ~ 122 °F (-10℃ ~ 50 ℃) | |
| Storage Temperature | 4°F ~ 144 °F (-20℃ ~ 60 ℃) | 4°F ~ 144 °F (-20℃ ~ 60 ℃) | |
| Humidity | RH90% Max. (Non-condensing) | RH90% Max. (Non-condensing) | |
| Mechanical | Chasis Material & Color | Silver, Aluminum Housing | Silver, Aluminum Housing |
| Product Net Weight | 0.66lb | 0.66lb | |
| Product Dimension | 6”(L) x 2.31” (W)x 2.31” (H) | 6”(L) x 2.31” (W)x 2.31” (H) | |
