Descripción:

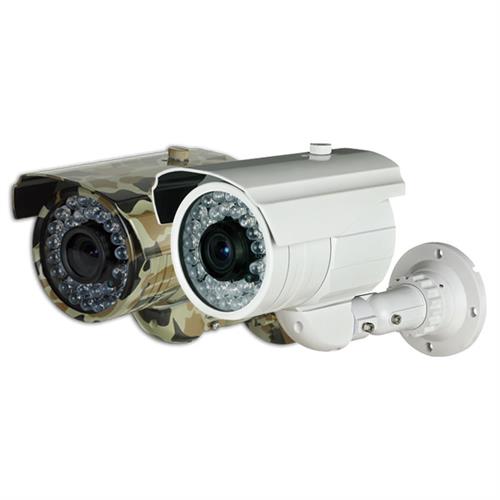

700 TVL, SONY 1/3", Ex-view HAD II CCD, color blanco, 2,8 ~ 12mm lente de distancia focal variable, 35 piezas de gran LEDs IR, reducción de ruido digital en 2D avanzado (2D DNR), función de reproducción de tono automático (ATR), IP 66 a prueba de intemperie, a prueba de agresiones, cubierta de aluminio, entrada de 12 V DC
Código: LTCMR5170
Comparte este producto
| Specifications | CMR5150(C) | CMR5160(C) | CMR5170 | |
| Image | Image Sensor | SONY 1/3" Super HAD II CCD | SONY 1/3" Super HAD II CCD | SONY 1/3" Ex-view HAD II CCD |
| Effective Pixels | NTSC: 510(H) x 492(V) | NTSC: 768(H) x 494(V) | NTSC: 976(H) x 494(V) | |
| Horizontal Resolution | 540 TVL | 600 TVL | 700 TVL | |
| Lens | Focal Length | 2.8 ~ 12mm varifocal lens | ||
| Iris | AES | |||
| Focus | Manual | |||
| Zoom | Manual | |||
| ICR | - | |||
| Electrical | Video System | NTSC | ||
| Video Scanning Type | 2:1 Interlace | |||
| Sync. System | Internal | |||
| S/N Ratio | > 50dB (AGC off) | > 52dB (AGC off) | ||
| Min. Illumination | > 0.3 Lux@F1.2 (Color) 0 Lux/F1.2 (IR On) |
|||
| Video Output | 1 BNC, 1.0 Vp-p, 75 Ohm Composite | |||
| Function | Electronic Shutter | NTSC: 1/60 ~ 1/100,000 | ||
| White Balance | ATW | |||
| BLC | BLC | |||
| Gain Control | Auto | |||
| OSD | - | |||
| Wide Dynamic Range | Digital WDR（ATR） | |||
| Star Light Sensing | - | |||
| DNR | 2D DNR | |||
| Mirror | - | |||
| Infrared LED | Infrared Red Lamps | 35 pcs large IR LEDs | ||
| IR Distance | 165ft (50m) | |||
| Power | Input Voltage | DC 12V | ||
| Power Consumption | < 2W (LED OFF) / < 6W (LED ON) | |||
| Environment | Weather Protection | IP 66 weather-proof | ||
| Vandal Protection | Vandal-resistant | |||
| Operating Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) | |||
| Storage Temperature | 4°F ~ 144 °F (-20℃ ~ 60 ℃) | |||
| Humidity | RH90% Max. (Non-condensing) | |||
| Mechanical | Chasis Material | Aluminum housing | ||
| Color | White | |||
| Product Net Weight | 2.27 lb (1030 g) | |||
| Product Dimension | 152mm x 104mm x 159mm | |||
| Packing | Box Weight | 2.38 lb (1080 g) | ||
| Box Dimension | 11.61" x 8.00" x 4.92" (295mm x 203mm x 125mm) | |||
| Box Quantity Per Carton | 12pcs | |||
| Carton Dimension | 23.62" x 16.34" x 15.47" (600mm x 415mm x 393mm) | |||
| Carton Net Weight | 27.24 lb (12.5 kg) | |||
| Carton Gross Weight | 28.56 lb (13 kg) | |||
| Accessories | Bracket | Yes | ||
| Screw | 4 | |||
| Expansion Tube | - | |||
| Screwdriver | - | |||
| Manual | 1 | |||
