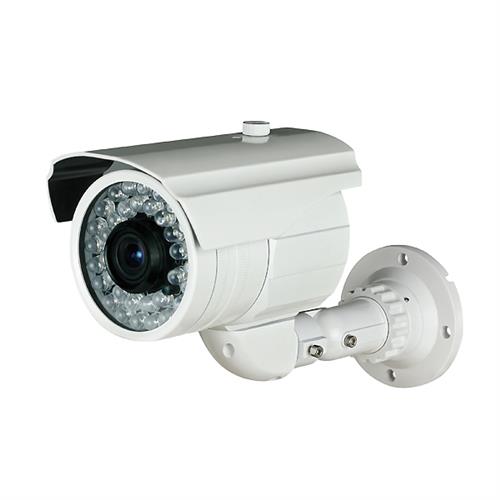

Descripción:
650 TVL, 1/3 "CCD, lente varifocal 2,8 ~ 12mm, 35pcs Ø8 IR LED,
IP66, color blanco, con cubierta de aluminio
Image Sensor | 1/3 CCD |
---|---|
Horizontal Resolution | 650TVL |
S/N Ratio | >48dB |
Scanning System | 2:1 interlace |
Minimum Illumination | 0 Lux (with IR RED ON) |
Synchronous System | Internal, Negative sync. |
Auto Electronic Shutter | NTSC: 1/60s ~ 1/100,000s |
Gamma Characteristic | 0.45 |
Infrared LEDs | 35pcs Ø8 Infrared LEDs |
IR Distance | 165ft(with IR on) |
Video Output | 1Vpp, 75 Ohm |
Auto Gain Control | Auto |
Power/Current |
CMR5165: DC 12V CMR5165D: DC 12V/ AC 24V |
Lens | 2.8-12mm |
Water Resistance | IP66 |
Dimension (mm) | 152(L) * 104(W) * 96(H) |
Weight | 2.27 lb (1030g) |
Storage Temperature | 1°F ~ 144 °F (-30 ~ 60 ℃) |
Operating Temperature | 14°F ~ 122 °F (-10 ~ 50 ℃) |
