Descripción:
Image | Image Sensor | 1/3" PixelPlus |
Effective Pixels | 728x488 | |
Horizontal Resolution | 600TVL | |
Video System | NTSC | |
Lens | Focal Length | 3.6mm fixed len |
Iris | Electronic | |
Focus | - | |
Zoom | - | |
Electrical | ||
Video Output | Composite Output 1.0V p-p at 75 ohm | |
Video Scanning Type | 2:1 Interlace | |
Sync. System | Internal | |
S/N Ratio | - | |
Electronic Shutter | 1/50~1/100,000 second | |
Min. Illumination | 0.01 lux | |
Function | White Balance | ATW |
Gain Control | Auto | |
Power | Input Voltage | DC 12V |
Environment | Weatherproof | - |
Operating Temperature | 14°F ~ 122°F (-10℃ ~ 50 ℃) | |
Storage Temperature | 4°F ~ 144 °F (-20℃ ~ 60 ℃) | |
Humidity | 10%-90% | |

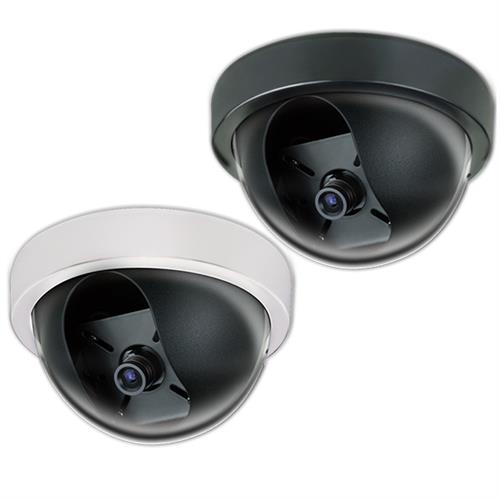

Mechanical | Chasis Material & Color | CMD8062 (White) / CMD8062B Black) |
Product Dimension |
4.63” (d) x 3” (h) | |
Weight | - |
