Descripción:

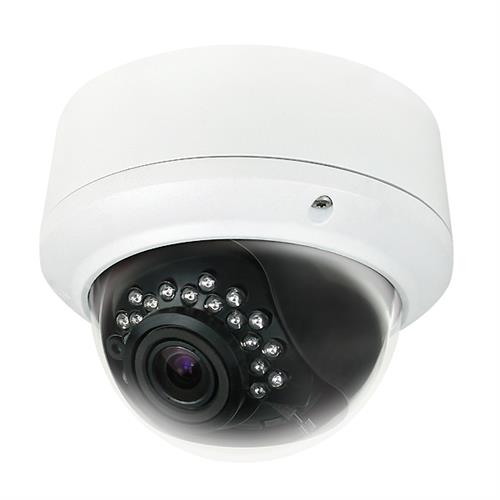

700 TVL, SONY 960H CCD, Sony Effio-E DSP, 2.8 ~ lente varifocal manual de 12 mm, 21 LEDs IR, Reducción de ruido digital en 2D (2DNR), Función de reproducción de tono automático (ATR), Construido en múltiples idiomas OSD, Entrada de 12 V DC, El tiempo IP66, A prueba de vandalismo
Código: LTCMD3570
Comparte este producto
| Image | Image Sensor | SONY 1/3" 960H CCD |
| Effective Pixels | NTSC: 976 (H) X 494 (V) | |
| Horizontal Resolution | 700 TVL | |
| Lens | Focal Length | 2.8 ~ 12mm varifocal lens |
| Lens Mount | Board | |
| Iris | AES | |
| Focus | Manual | |
| Zoom | Manual | |
| Video System | NTSC | |
| Video Scanning Type | 2:1 Interlace | |
| Electrical | Sync. System | Internal |
| S/N Ratio | > 50dB(AGC off) | |
| Min. Illumination | 0.3 Lux@F1.2 (Color) 0 Lux@F1.2 (IR Led On) |
|
| Video Output | 1 BNC, 1.0 Vp-p, 75 Ohm Composite | |
| Electronic Shutter | 1/60 ~ 1/100,000 | |
| White Balance | ATW /Push /User1 /User2 /Anti-CR /Push Lock | |
| Function | Back Light Compensation | OFF/BLC/HLC |
| Gain Control | Auto / Low Lux AGC Multiplier | |
| OSD | Multi-language | |
| Wide Dynamic Range | Digital WDR（ATR） | |
| DNR | 2d, OFF / or Y/C adjustment 16 Levels | |
| Mirror | Horizontal Flip, ON/OFF | |
| Infrared Red Lamps | 21 IR LEDs | |
| Effective IR Lighting Distance | 66 ft | |
| Infrared LED | Input Voltage | DC 12V +/- 10% |
| Power Consumption | 140mA/420mA(IR LED ON) | |
| Power | Weather Protection | IP66 |
| Vandal Protection | Yes | |
| Environment | Operating Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) |
| Storage Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) | |
| Humidity | RH90% Max. (Non-condensing) | |
| Mechanical | Chasis Material & Color | Aluminum & White |
| Product Net Weight | 1.9lb(850g) | |
| Product Dimension | ø130mm x 112mm |
