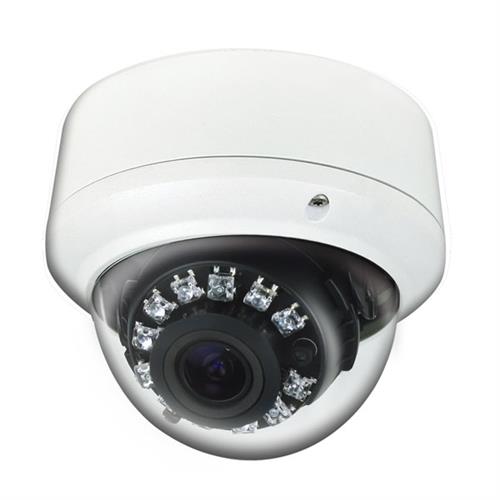

Descripción:
600 TVL, 1/3" PixelPlus, 2.8 ~ 12mm lente de distancia focal variable, 12pc SuperFlux IR LEDsControl, automático de ganancia (AGC), compensación de contraluz (BLC), DC 12V, IP66, resistente a la intemperie, a prueba de agresiones
Comparte este producto
| Image | Image Sensor | 1/3" PixelPlus |
| Effective Pixels | NTSC: 720 (H) X 480 (V) | |
| Horizontal Resolution | 600 TVL | |
| Lens | Focal Length | 2.8 ~ 12mm varifocal lens |
| Lens Mount | Fixed | |
| Iris | AES | |
| Focus | Manual | |
| Zoom | Manual | |
| Video System | NTSC | |
| Video Scanning Type | 2:1 Interlace | |
| Electrical | Sync. System | Internal |
| S/N Ratio | > 50dB(AGC off) | |
| Min. Illumination | 0.3 Lux@F1.2 (Color) 0 Lux@F1.2 (IR Led On) |
|
| Video Output | 1 BNC, 1.0 Vp-p, 75 Ohm Composite | |
| Electronic Shutter | 1/30 ~ 1/15,000 | |
| White Balance | - | |
| Function | Back Light Compensation | YES |
| Auto Gain Control | YES | |
| OSD | - | |
| Wide Dynamic Range | - | |
| DNR | - | |
| Mirror | - | |
| Infrared Red Lamps | 12 Super Flux IR LEDs | |
| Effective IR Lighting Distance | 75 ft | |
| Infrared LED | Input Voltage | DC 12V +/- 10% |
| Power Consumption | 50mA/150mA(IR LED ON) | |
| Power | Weather Protection | IP66 |
| Vandal Protection | Yes | |
| Environment | Operating Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) |
| Storage Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) | |
| Humidity | RH90% Max. (Non-condensing) | |
| Mechanical | Chasis Material & Color | Aluminum & White |
| Product Net Weight | 1.9lb(850g) | |
| Product Dimension | ø130mm x 112mm |
