Descripción:

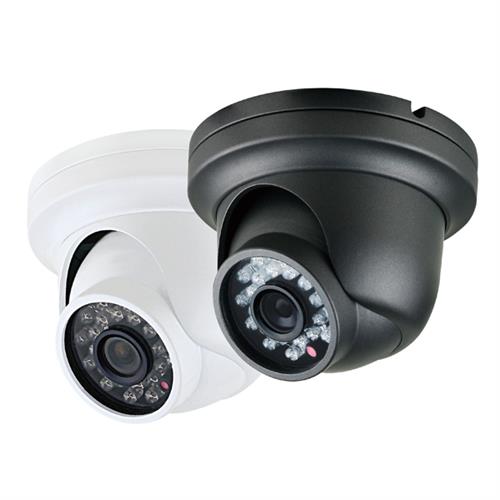

1/3 "PixelPlus, 600 TVL, lente Fijo 3.6mm, LED 23 pcs IR, de 70 pies, a prueba de agresiones y resistente a la intemperie, 3.7 "base.
Código: LTCMT2162
Comparte este producto
| Model | CMT2162/ CMT2162B | |
| Image | ||
| Image Sensor | 1/3" PixelPlus | |
| Effective Pixels | NTSC: | |
| Horizontal Resolution | 600 TVL | |
| Lens | ||
| Focal Length | 3.6mm fixed lens | |
| Iris | AES | |
| Focus | Manual | |
| Zoom | Manual | |
| ICR | - | |
| Electrical | ||
| Video System | NTSC | |
| Video Scanning Type | 2:1 Interlace | |
| Sync. System | Internal | |
| S/N Ratio | > 50dB (AGC off) | |
| Min. Illumination | > 0.3 Lux@F1.2 (Color) 0 Lux/F1.2 (IR On) |
|
| Video Output | 1 BNC, 1.0 Vp-p, 75 Ohm Composite | |
| Function | ||
| Electronic Shutter | NTSC: 1/60 ~ 1/100,000 | |
| White Balance | ATW | |
| BLC | BLC | |
| Gain Control | Auto | |
| OSD | - | |
| Wide Dynamic Range | - | |
| Star Light Sensing | - | |
| DNR | - | |
| Mirror | - | |
| Infrared LED | ||
| Infrared Red Lamps | 23 pcs IR LEDs | |
| IR Distance | 70ft (23m) | |
| Power | ||
| Input Voltage | DC 12V | |
| Power Consumption | < 2W (LED OFF) / < 6W (LED ON) | |
| Environment | ||
| Weather Protection | - | |
| Vandal Protection | - | |
| Operating Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) | |
| Storage Temperature | 4°F ~ 144 °F (-20℃ ~ 60 ℃) | |
| Humidity | RH90% Max. (Non-condensing) | |
| Mechanical | ||
| Chasis Material | Aluminum housing | |
| Color | White for CMT2162 Black for CMT2162B |
|
| Product Net Weight | 1.32 lb (600 g) | |
| Product Dimension | Ø 100mm x 80mm | |
