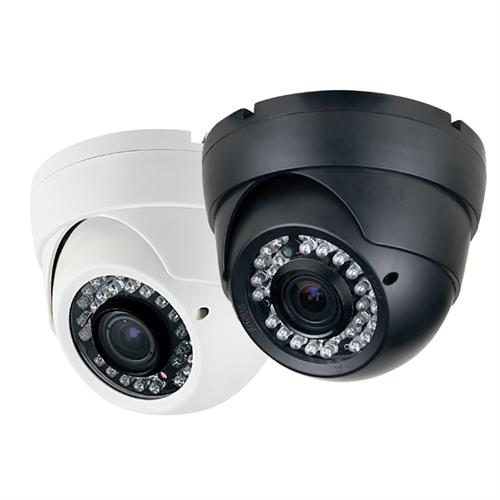

Descripción:
600 TVL, 1/3" PixelPlus, 2,8 ~ 12mm lente de distancia focal variable, 35 pcs IR LEDs Avanzada de reducción de ruido digital en 2D (2D DNR), Función de reproducción de tono automático (ATR), aplicación Interior, carcasa de plástico, Entrada de 12 V DC
Código: LTCMT2063PB
Comparte este producto
| Image | Image Sensor | 1/3" PixelPlus |
| Effective Pixels | - | |
| Horizontal Resolution | 600 TVL | |
| Lens | Focal Length | 2.8 ~ 12mm varifocal lens |
| Iris | AES (Auto Electricial Shutter) | |
| Focus | Manual | |
| Zoom | Manual | |
| ICR | - | |
| Electrical | Video System | NTSC |
| Video Scanning Type | 2:1 Interlace | |
| Sync. System? | Internal | |
| S/N Ratio | > 50dB (AGC off) | |
| Min. Illumination | > 0.3 Lux@F1.2 (Color) 0 Lux/F1.2 (IR On) |
|
| Video Output | 1 BNC, 1.0 Vp-p, 75 Ohm Composite | |
| Function | Electronic Shutter | 1/60 ~ 1/100,000 |
| White Balance | ATW | |
| BLC | BLC | |
| Gain Control | Auto | |
| OSD | - | |
| Wide Dynamic Range | - | |
| Star Light Sensing? | - | |
| DNR | 2D DNR | |
| Mirror | - | |
| Infrared LED | Infrared Red Lamps? | 35 pcs IR LEDs |
| IR Distance | 100ft (30m) | |
| Power | Input Voltage | DC 12V |
| Power Consumption | < 2W (LED OFF) / < 6W (LED ON) | |
| Environment | Weather Protection | - |
| Vandal Protection | - | |
| Operating Temperature | 14°F ~ 122 °F (-10℃ ~ 50 ℃) | |
| Storage Temperature | 4°F ~ 144 °F (-20℃ ~ 60 ℃) | |
| Humidity | RH90% Max. (Non-condensing) | |
| Mechanical | Chasis Material & Color | Plastic housing & CMD707HW (White) / CMD707H (Black) |
| Product Net Weight | 0.62lb (280 g) | |
| Product Dimension | Ø 120mm x 100mm | |
| Packing | Box Weight | 0.73 lb (330 g) |
| Box Dimension | 4.84" x 4.88" x 4.49" (123mm x 124mm x 114mm) | |
| Box Quantity Per Carton | 24pcs | |
| Carton Dimension | 20.28" x 15.35" x 9.84" (515mm x 390mm x 250mm) | |
| Carton Net Weight | 14.88 lb (6.7 kg) | |
| Carton Gross Weight | 17.52 lb (8.0 kg) | |
| Accessories | Bracket | - |
| Screw | - | |
| Expansion Tube | - | |
| Screwdriver | - | |
| Manual | 1 |
