Descripción:

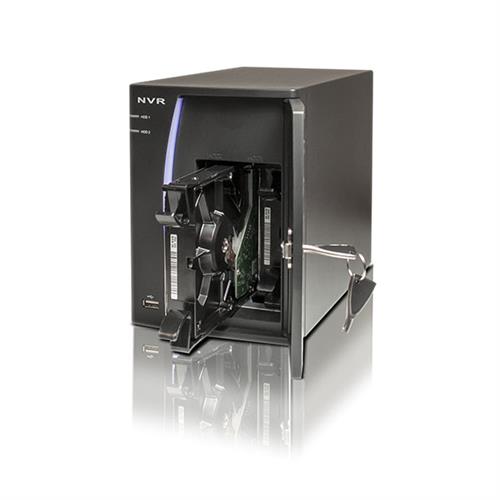

Diseño compacto Mini-Tower con tecnología Hot-Swap, Compatible con cámaras de red de otros fabricantes, de hasta 5 megapixeles de resolución en la grabación, HDMI y salida VGA de hasta 1920 x 1080p, 4 interfaces de red PoE independientes, de diseño vertical para una instalación fácil HDD
Código: LTN7608V-P4
Comparte este producto
| LTN7604V-P4 | LTN7608V-P4 | LTN7616V-P4 | |
| Video / Audio input | |||
| IP video input | 4-ch | 8-ch | 16-ch |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) | ||
| Incoming bandwidth | 20Mbps | 40Mbps | 80Mbps |
| Video / Audio output | |||
| Decoding resolution | 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | ||
| HDMI / VGA output | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280×720 /60Hz, 1024 × 768 /60Hz |
||
| Audio output | 1-ch, RCA (Linear, 1kΩ) | ||
| Playback resolution | 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | ||
| Synchronous playback | 4-ch 720P / 2-ch 1080P / 1-ch 5MP | 8-ch 4CIF / 4-ch 720P/ 2-ch 1080P / 1-ch 5MP | |
| Hard disk | |||
| SATA | 2 SATA interfaces for 2 HDDs | ||
| Capacity | Up to 4TB for each disk | ||
| External interface | |||
| Network interface | 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface 4 independent 10 /100 Mbps PoE Ethernet interfaces |
||
| Serial interface | 1 RS-485 half-duplex interface | ||
| USB interface | 2 × USB 2.0 | ||
| General | |||
| Power supply | 100~240VAC, 47~63Hz, 3A | ||
| Power Consumption | ≤ 10 W (without hard disk) | ||
| Working temperature | -10 °C ~ +55 °C(14°F~131°F) | ||
| Working humidity | 10% ~ 90% | ||
| Chassis | Vertical chassis | ||
| Dimension | 130 × 236 × 180mm(5.1”×9.3”×7.1”) | ||
| Weight | ≤ 2 Kg(4.4lb) ( without hard disk) | ||
