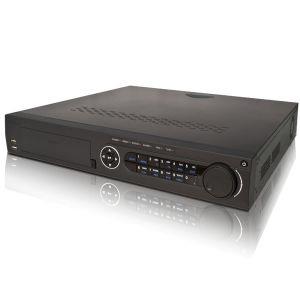

Descripción:
Cuenta con 16CH NVR 1080P, compatible con cámaras de red de terceros, hasta 5 megapíxeles de resolución, salida HDMI y VGA de hasta 1920 × 1080p de resolución, 16-CH de reproducción simultánea, HDD de cuotas y gestión de grupos, estructura en 8 interfaces de red PoE independientes.
Código: LTN7716-P8
Comparte este producto
| System | Compression Format | H.264 | ||
| OS | Embedded Linux | |||
| Video/ Audio Output |
IP Video Input | 16-ch, Max 40Mbps Input | ||
| VGA Output | 1-ch, resolution: 1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|||
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω) | |||
| HDMI Output | 1-ch, resolution: 1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz |
|||
| Recording Resolution | 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF | |||
| Simultaneous Playback | 16-ch | |||
| Playback Resolution | 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF | |||
| Dual Stream | Main and Sub-Streams | |||
| Audio Input | 1-ch BNC | |||
| Audio Output | 1-ch BNC | |||
| Backup Format | MP4 | |||
| Storage | SATA | 4 SATA Interfaces for 2HDDs | ||
| e-SATA | 1 eSATA Interface | |||
| Capacity | Up to 4TB capacity for each disk | |||
| External Interface | Network Interface | 1 RJ45 10M/100M/1000M adaptive Ethernet 8 independent 100 Mbps PoE network interfaces |
||
| USB Interface | 3 USB 2.0 Interfaces | |||
| Serial Interface | 1 RS-485, 1xRS-232 | |||
| Alarm Input: | 16 | |||
| Alarm Output | 4 | |||
| General | Mobile App | NVMS7000 for iPhone/iPad/Android | ||
| Power Supply | 100 ~240VAC | |||
| Consumption | ≤ 15 W (without hard disk) | |||
| Working Temperature | -10 °C ~ 55 °C | |||
| Humidity | 10%~90% | |||
| Chassis | 19-ich rack-mounted 1U chassis | |||
| Dimensions | 17.5" × 15.25" ×2.75" (W x D x H) | |||
| Weight | ≤ 2 Kg ( without hard disk) | |||
