Descripción:

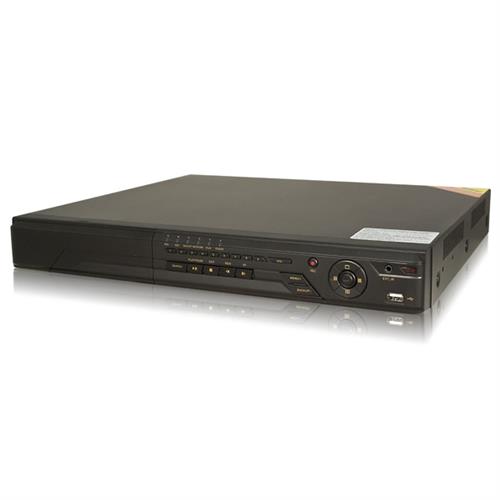

DVR con 8/16CH 960H (WD1) Tiempo real H.264 Red Pentaplex DVR, 4 canales de entrada de audio, 1920x1080 HDMI y 1280x1024 VGA de salida, 8/16CH WD1 Reproducción en tiempo real, 2 x SATA HDD, vigilancia de télefono móvil, caja estándar 1U, IR Extender (Cable IR Extender no incluido)
Código: LTD2508HE-C
Comparte este producto
| Model No. | LTD2508HE-C | LTD2516HE-C | |
| System | Compression Format | H.264 | |
| OS | Embedded Linux | ||
| Video | Input | 8CH, BNC (1.0Vp-p, 75Ω) | 16CH, BNC (1.0Vp-p, 75Ω) |
| Standard Output | 1*VGA: 1280x1024, 800x600, 1024x768; 1*BNC Mainout; 1*Spot | ||
| Advanced Output | Compatible with HDMI 1920x1080 | ||
| Audio | Input | 4CH | |
| Output | 1CH | ||
| Bidirectional Talk | YES | ||
| Recording | |||
| WD1 (960H) | 240(NTSC) / 200(PAL) fps | 480(NTSC) / 400(PAL) fps | |
| CIF | 240(NTSC) / 200(PAL) fps | 480(NTSC) / 400(PAL) fps | |
| Recording Mode | Schedule, Manual, Motion Detection, Sensor | ||
| Playback | Max Playback Channel | 8CH | 16CH |
| Search Mode | Time, Event, File Management, Image (Snapshot) | ||
| Backup | USB Disk | 1 USB2.0 for portable HDD, DVD-RW | |
| DVD Burner | Optional | ||
| Backup Format | DAT or AVI | ||
| Remote Application | Dual Stream | Master stream: 1~25/30fps@4CIF/CIF l Network stream: 1~6/7fps@CIF |
|
| Browser | IE (windows XP/2000/Vista/7) , Safari(Mac OS), Chrome,Firefox | ||
| Master Stream in Network | YES | ||
| CMS | YES | ||
| Mobile Phone | SuperCam/pro/HD for iPad/iPad2/iPhone/Blackberry/Android | ||
| User Access | 10 users online with professional authority management | ||
| Alarm | Alarm Input | 8CH | 16CH |
| Alarm Output | 1CH | 1CH | |
| Storage | HDD | 2 x SATA, up to 4TB | 2 x SATA, up to 4TB |
| e-SATA | - | ||
| Max HDD after Deploying DVD | 1 | 1 | |
| PTZ | PTZ | 1*RS485 | |
| PTZ Protocol | PELCOP, PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA, SAMSUNG, RM110, HY | ||
| PTZ Control | Pan, Tilt, Zoom, Preset, Cruise, Trace | ||
| Network | Ethernet | 10 /100 / 1,000 Mbps Ethernet (RJ-45) | |
| Protocol | TCP/IP, DHCP, DDNS, NTP, SMTP | ||
| IR Controller | 1 | ||
| Others | |||
| Power Supply | DC12V | DC12V | |
| External IR Receiver Interface | Yes | Yes | |
| Operating Temperature | 0°C ~50°C | 0°C ~50°C | |
| Humidity | 10% ~ 90% Humidity | 10% ~ 90% Humidity | |
| Product Weight | NW: 5.2kg GW:6.2kg | NW: 5.7kg GW:6.7kg | |
| Product Dimension | 16.9"(L)×15"(W)×2"(H) | 16.9"(L)×15"(W)×2"(H) | |
