Descripción:

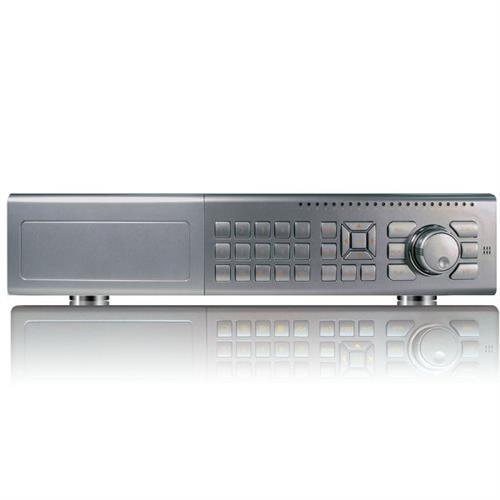

LTD2532HD-C un premier 32 CH en tiempo real 960H alta resolución DVR, H.264 de alta compresión de formato de perfil y de la industria avanzada SOC técnicas para que se registre 960H en tiempo real en cada canal
Código: LTD2532HD-C
Comparte este producto
| Model No. | LTD2532HD-C | |||
| System | Compression Format | H.264 | ||
| OS | Embedded Linux | |||
| Video | Input | 32CH, BNC (1.0Vp-p, 75Ω) | ||
| VGA Output | VGA: 1080P | |||
| BNC | 1 CH | |||
| Loop Output | 32CH | |||
| Spot Output | 1CH | |||
| HDMI | Compatible with HDMI 1920x1080 output, progressive scan, 60Hz frame rate. |
|||
| Audio | Input | 16 | ||
| Output | 1 | |||
| Bidirectional Talk | YES | |||
| Recording | ||||
| Realtime | 32CH WD1 | |||
| Recording Mode | Manual,Timer, Motion, Sensor | |||
| Playback | Playback Channel | 16 | ||
| Search Mode | Time, Event, File Management | |||
| Backup | USB Disk | 1 USB 2.0 port | ||
| DVD Burner | - | |||
| Backup Format | DAT or AVI | |||
| Remote Application | Dual Stream | Master stream: 30(NTSC)/25(PAL)fps CIF per channel Network stream: 1/3fps CIF per channel |
||
| Browser | IE, Safari, Chrome, Firefox | |||
| Master Stream in Network | YES | |||
| CMS | Yes | |||
| Mobile Phone | BroView for iPad/iPad2/iPhone/Android | |||
| User Access | 18 users online with professional authority management | |||
| Alarm | Alarm Input | 16 CH | ||
| Alarm Output | 4 CH | |||
| Storage | HDD | 8 SATA | ||
| e-SATA | 1 | |||
| Max HDD after Deploying DVD | 4 | |||
| PTZ | PTZ | 1*RS485 | ||
| PTZ Protocol | PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP, VISCA, SAMSUNG, RM110,HY |
|||
| Network | Ethernet | 1000 Mbps Ethernet (RJ-45) | ||
| Protocol | TCP/IP, DHCP, DDNS, NTP, SMTP | |||
| Others | ||||
| Power Supply | 100VAC-240VAC | |||
| Operating Temperature | 0°C ~50°C | |||
| Humidity | 10% ~ 90% Humidity | |||
| Product Dimension | 16.75” (l) x 17.75 (w) x 3.5” (h) | |||
