Descripción:

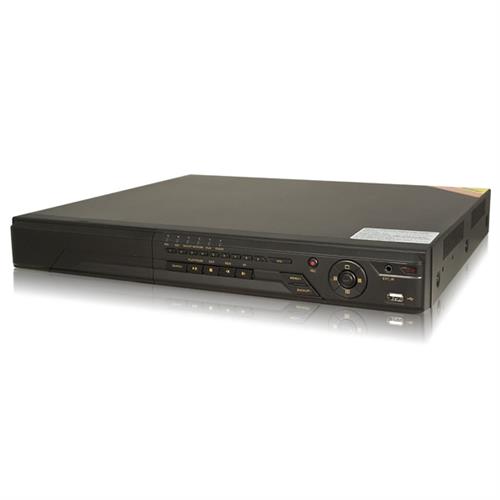

LTD2816NE-L NVR (Network Video Recorder) adopta chips de procesamiento de vídeo de alto rendimiento y un sistema Linux embedded. H.264 con velocidad de bits baja, dual stream, interfaz SATA, salida VGA ratón compatible, HDMI / CVBS / VGA de salida. Apoyo entradas de cámara IP 16CH, Max 120fps @ 1080p, 720p @ 240fps vista previa de impresión, 2 SATA, USB 2.
Código: LTD2816NE-L
Comparte este producto
| System | Compression | Standard H.264 Main profile |
| OS | Embedded LINUX | |
| Video | Output | Video Output: 1 VGA(Max 1280x1024);1 BNC; 1 HDMI (1920 x 1080) |
| IP Input |
1080P | 16CH@120FPS |
| 720P | 16CH@240FPS | |
| VGA | 16CH@480FPS | |
| Audio | Input | RCA X1 |
| Output | RCA X1 | |
| 2-way audio | Yes | |
| Record | Resolution | 1080P/720P/VGA |
| Display Frame Rate | 100fps ( PAL) ，120fps( NTSC) | |
| Record Frame Rate | 120fps(1080P); 240fps(720P); 480fps(D1) | |
| Bit rate | 768k~12Mbps | |
| Encode | VBR/CBR | |
| Quality | Five level | |
| Mode | Manual, timer, motion, sensor | |
| File | Lock, unlock, reserving time, redundancy | |
| Play back | Channel | 16CH |
| Search | Time/calendar search, event search(montion, external alarm event) | |
| Intelligent search | Apply different colors to display whether a channel in a period of time recording or not | |
| Function | Play, pause, FF, Rewind, Shuttle control, preview previous video& next video, digital zoom and support frag the progress bar to preview |
|
| Alarm | Mode | Sensor, motion detection, video loss |
| Input | 16CH | |
| Output | 1CH | |
| Triggering | Record, PTZ alarm out, e-mail | |
| Network | Interface | Rj45 10/100M |
| Protocal | TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS,Email | |
| others | 5 users online, dual streaming real-time transmission | |
| Cell phone | OS | iPhone, iPad, Andriod |
| Function | Multi-screen surveillance(for certain model), record, snapshot, PTZ control, save the device list | |
| Port | HDD | SATA x 1+DVD-RW x 1 or SATA x 2; |
| RS485 | RS485X2, one for PTZ, another for keyboard | |
| USB | USB2.0X2, one for mouse, another for USB backup device | |
| Remote controller | Yes | |
| Others | Power supply | D C 12V |
| Average Operating Power | ≤30W | |
| Dimention | 430mm(L)x 385mm(W) x 55mm(H) | |
| Work Environment | 0～50 ℃，10%～90% Humidity | |
| Mechanical | Chasis Material & Color | Metal & Black |
| Product Net Weight | 430mm(L) x 385mm(W) x 55mm(H) | |
| Product Dimension | 8lb(3.63Kg) | |
| Packing | Qty | 4pcs |
| Carton Dimension | 603mm(L)×578mm(W)×490mm(H) | |
| Carton Gross Weight | 19kg | |
| Accessories | Power Adapter | 1 |
| IR Receiver | 1 | |
| Mouse | 1 | |
| Cable | Ethernet/BNC(Female)-RCA(Female) | |
| SCREWS | 4 | |
| CD | 1 | |
| Manual | 1 |
