DVR Professional - LTD2708XD-P 8CH 1080P Realtime H.264 Pentaplex Network DVR[LTS]

Venta,distribucion e instalación de DVR Professional - LTD2708XD-P 8CH 1080P Realtime H.264 Pentaplex Network DVR[LTS] en Ciudad de México,Guadalajara,León,Monterrey,Puebla

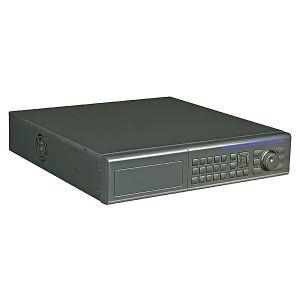

DVR Professional - LTD2708XD-P 8CH 1080P Realtime H.264 Pentaplex Network DVR[LTS]
LTS

Descripción:

8CH 1080P Tiempo real H.264 Red Pentaplex DVR, entrada de audio 8CH, alarma 8CH,HDMI/VGA/BNC salida de hasta 1920×1080P de resolución, 4CH síncronica reproducción, 8xSATA HDD, vigilancia de teléfono móvil, 2U Chassis, AC 100~240V

Código: LTD2708XD-P
Solicitar cotización
LTD2708XD-P
System Compression Format Standard H.264 Hight profile
OS Embedded Linux
Video  Input 8CH, BNC (1.0Vp-p, 75Ω)
Standard Output 1*VGA: 1920x1080,1280x1024, 800x600, 1* BNC+1 Spot out
Advanced Output 1*HDMI : 1080P: 1920×1080/60Hz
Audio Audio Input 8CH, RCA (2.0 Vp-p, 1 kΩ)
Audio Output 1CH  RCA (Linear, 1 kΩ)
Bidirectional Talk 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using 1ch audio input)
Alarm Alarm in/out 8CH/4CH
Recording SDI Recording 240(NTSC)/200(PAL)fps
Recording Mode Schedule, Manual,  Motion, Sensor
Playback Max Playback Channel 4CH
Search Mode time, event, file
Backup USB Disk USB or SATA
Remote Application Dual Stream Support; master stream, sub-stream @ WD1/D1/CIF
Browser IE (windows XP/2000/Vista/7) , Safari(Mac OS), Chrome,Firefox
CMS YES
Mobile Phone Broview for iPad/iPad2/iPhone//Android
User Access 10users online with professional authority management
Storage HDD 8 x SATA, eSATA x 2 ,4T per HDD, support DVD-RW
PTZ PTZ 2 RS-485 interface
PTZ Protocol l Multiple PTZ protocols supported
PTZ Control Pan, Tilt, Zoom, Preset, Cruise, Trace
Network Ethernet 1, RJ45 10M / 100M Ethernet interface
Protocol TCP/IP,UDP,DHCP,DNS,PPPoE，DDNS，Email
Others Power Supply AC 100~240V
Consumption ≤ 10 W (without hard disk or DVD-R/W)
Operating Temperature -10 ºC ~+55 ºc
Humidity 10% ~ 90% humidity
Product Dimension 430mm ×450mm ×89mm
Accessories Power Adapter 1
IR Receiver 1
Mouse 1
Cable Ethernet/BNC(Female)-RCA(Female)
SCREWS 4
CD 1
Manual 1
Packing Product Net weight 6.8kg
Product Dimension 430mm(L) x 450mm(W) x 89mm(H)
Product Box Dimension 550mm(L) x 155mm(W) x 535mm(H)
Quantity Box of One Carton 2
 Carton Dimension 574mm(L) x 340mm(w) x 570mm(H)
Carton Gross Weight 19.5kg
Descargar:Ficha Técnica LTD2708XD-P Ficha Técnica LTD2708XD-P
