Descripción:

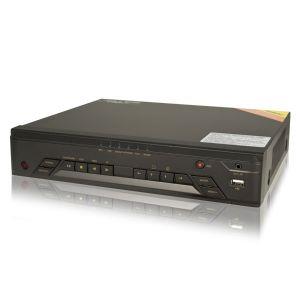

DVR con 4 canales en tiempo real H.264 Pentaplex DVR de red, grabación en tiempo real de 4 canales CIF, salida HDMI / VGA / BNC de hasta 1920 × 1080p de resolución, la reproducción sincronizada en tiempo real de 4 canales, 1 x SATA HDD hasta 3TB
Código: LTD2304SS-C
Comparte este producto
|
LTD-2304SS-C
|
||
| System | Compression |
Standard H.264 High Profile
|
| OS |
Embedded Linux
|
|
| Video | Input |
4CH, BNC (1.0Vp-p, 75Ω)
|
| BNC output |
1* BNC: PAL: 704 × 576, NTSC: 704 × 480;
|
|
| VGA Output |
1*VGA: 1920x1080,1280x1024, 800x600,
|
|
| HDMI Output |
1*HDMI : 1080P: 1920×1080/60Hz
|
|
| Audio | Audio Input |
2CH, RCA (2.0 Vp-p, 1 kΩ)
|
| Audio Output |
1CH RCA (Linear, 1 kΩ)
|
|
| Recording | Real-time Recording |
960H/D1/CIF
|
| 960H |
120(NTSC)/100(PAL)fps
|
|
| D1 |
120(NTSC)/100(PAL)fps
|
|
| CIF |
120(NTSC)/100(PAL)fps
|
|
| Recording Mode |
Schedule, Manual, Motion, Sensor
|
|
| Playback | Max Playback |
4CH
|
| Search Mode |
time, event, file
|
|
| Backup | USB Disk |
USB or SATA
|
| Remote Application | Dual Stream |
Support; sub-stream @ CIF
|
| Browser |
IE (windows XP/2000/Vista/7),Safari(Mac OS),Chrome,Firefox
|
|
| Mobile Phone |
Broview for iPad/iPad2/iPhone//Android
|
|
| Storage | HDD |
1 x SATA, up to 3TB
|
| PTZ | PTZ |
1 RS-485 interface, half-duplex
|
| PTZ Protocol |
Multiple PTZ protocols supported
|
|
| Network | Ethernet |
1, RJ45 10M / 100M Ethernet interface
|
| Protocol |
TCP/IP,UDP,DHCP,DNS,PPPoE,DDNS,Email
|
|
| Others | IR Controller |
YES
|
| Power Supply |
DC12V 2A
|
|
| Operating Temperature |
-10 ºC ~+55 ºc
|
|
| Humidity |
10% ~ 90% humidity
|
|
| Mechanical | Material &color |
Metal & Black
|
| Product NW |
NW:<2kg
|
|
| Product Dimension |
300mm ×270mm ×58mm
|
|
| Accessory | Power Adapter |
1
|
| Remote |
1
|
|
| Mouse |
1
|
|
| Screws |
4
|
|
| CD |
1
|
|
| Manual |
1
|
|
